Synergy A - Network Settings

Synergy A - Network Settings

      1. DHCP


      a. Press the “Menu” key.

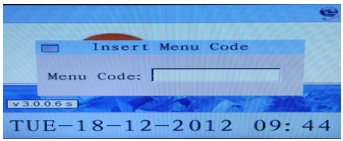

      b. Insert the admin code and press Enter key

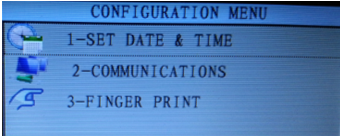

      c. Select option 2 “Communications” and press enter key

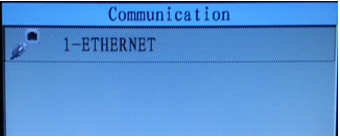

      d. Select option 1 - Ethernet

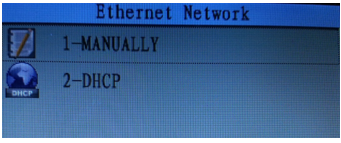

      e. Select option 2 - DHCP


      Turn it on and device will reboot
      Device will get allocated on DHCP Scope

2. Static IP Address

            a. Press the “Menu” key.

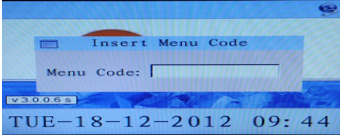

      b. Insert the admin code and press Enter key



      c. Select option 2 “Communications” and press enter key



      d. Select option 1 - Ethernet

      e. Select option 1 - Manually

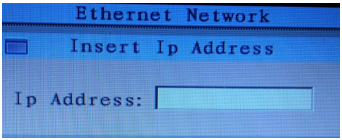

      f. Insert IP address

            Enter the IP address and press the Enter key.
            Format: xxx.xxx.xxx.xxx (Dotted decimal)
            E.g.: 192.168.0.111

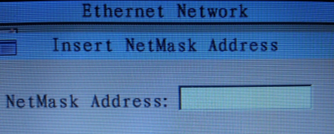

      g. Insert Subnet Mask Address


            Enter the subnet mask and press the Enter key.
            Format: xxx.xxx.xxx.xxx (Dotted decimal)
            E.g.: 255.255.255.000

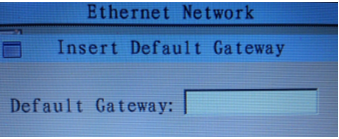

      h. Insert Gateway Address



            Enter the Gateway address and press the Enter key.
            Format: xxx.xxx.xxx.xxx (Dotted decimal)
            E.g.: 192.168.000.001

      After inserting all the network settings, press ESC key until you come out completely from the Menu.
