Temperature Kiosk Setup
This document briefs detailed information
on Temperature Kiosk setup on both Synergy Workforce GUI and Temperature Kiosk Device
Top Information Bar:
The time information bar will automatically
synchronize the server time and day of the week.

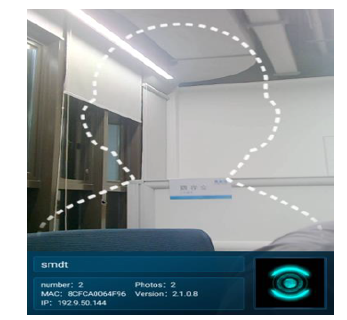

Camera Screen:
The camera screen is displayed in full
screen, and the recognition result is displayed when passing through.
Bottom Information Bar:
The company name, number of people, photo,
MAC address, IP address and version number will be displayed.

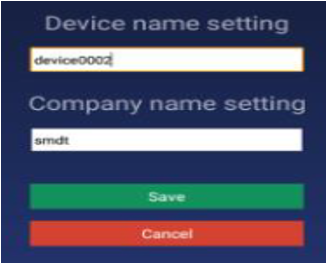

Company Name - The default is to set the company name,
which can be set through the background.
Number of people and photo information - The number of people refers to the total
number of people in the device, and the number of photos is the number entered
in the face database, which changes automatically after synchronizing data.
MAC Address - Mac address information of the
current device.
Version Number - The current version number of the client.
IP Address - Displays current IP address of the device
Device IP must be set to Static IP address.
To set static IP address, you must connect
physical USB mouse to one of the USB ports on device.
Next right-click on mouse (will prompt to insert
password. Default Password = 123456) and close the application.
Next go to Settings – Connections –
Ethernet – change from DHCP to Static and Insert the details and save
Setup
on Synergy Workforce GUI
Go to System Setup – Devices
Click on
Add device
Type = Synel Finger and Card Device
Utilisation = Select
from Time and Attendance, Access Control, Time and Attendance + Access Control
depending on the transactions required for respective module. For Visitor
Management only – select Time and Attendance.
Device Type = Temperature
Kiosk
Time Zone = Respective
Time Zone for the device
10 Digit buffer switch = ON
IP Address = IP
address of the device (or Public IP address on the router in case of Port
Forwarding)
Device Port no =
Respective port no of the device based on Port forwarding rules if applicable

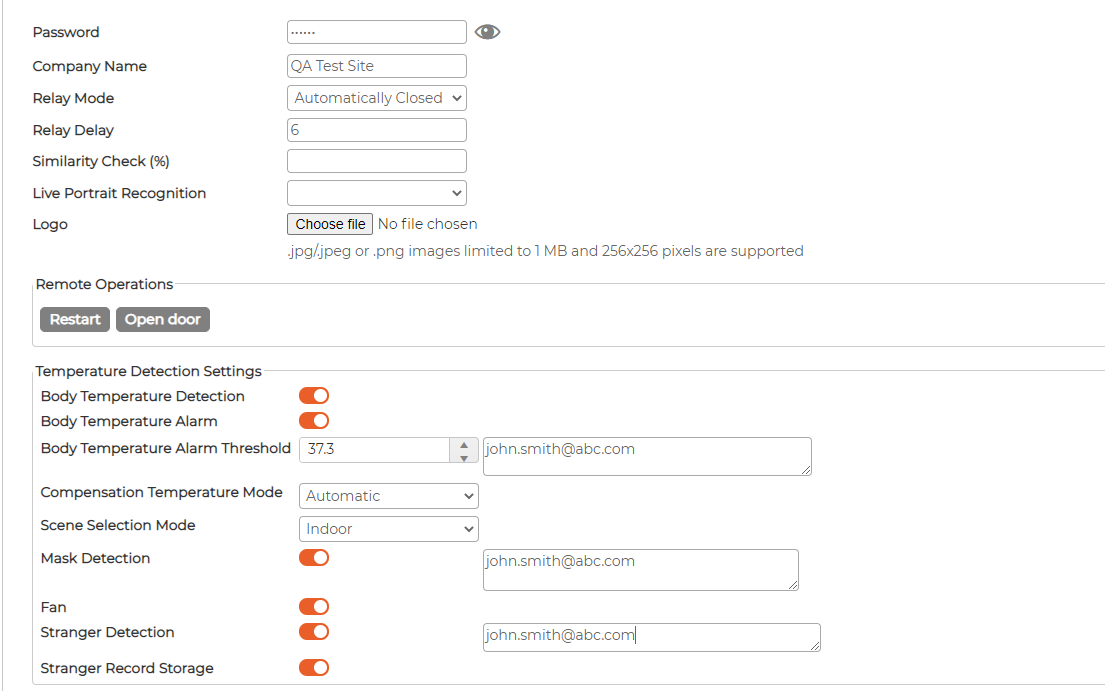

Next go to Temperature Kiosk
Settings Tab
Password = Set Password for the device.
Company Name = Information is displayed on device
Relay Mode = set desired value (Only applicable if device used for controlling door access)
Relay Delay = Set desired value
Similarity Check = Default value 80%
Live Portrait Recognition = select desired value
Logo = Select image from the pc to be uploaded and displayed on the device
Remote Operations = To restart the device and open relay if necessary
Body Temperature Detection = Turn ON/OFF
Body Temperature Alarm = Turn ON/OFF
Body Temperature Alarm Threshold = set desired amount for the alarm and
email notification to be triggered. Insert the email addresses of the recipients separated by comma.
Compensation Temperature mode = select either Automatic or Manual. If
manual selected, User would get further option to set desired compensation
amount
Scene Selection Mode = select either Indoor or Outdoor
Mask Detection = Turn ON/OFF. If turned on and person not
wearing mask detected, system can send email notification to the recipient
inserted in the box
Fan = Turn ON/OFF
Stranger Detection = Turn ON/OFF. If turned on and person not
detected as stranger, system can send email notification to the recipient
inserted in the box.
Stranger Record Storage = Turn ON/OFF
Save settings once done.

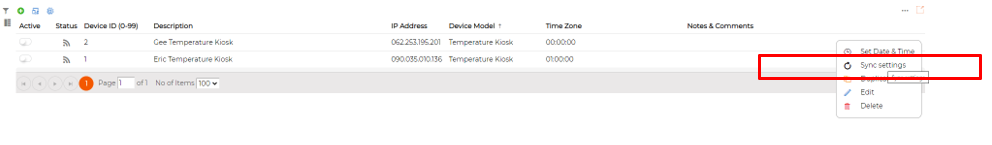

Send settings manually by clicking Sync
Settings for each individual device
Setup
on Device
Setup on device is not required, as most of
the settings are derived from Synergy Workforce GUI.
However, if you still must make changes on device
itself – You will need to connect wired USB mouse with middle button to one of
the USB ports on the device
Device Administration

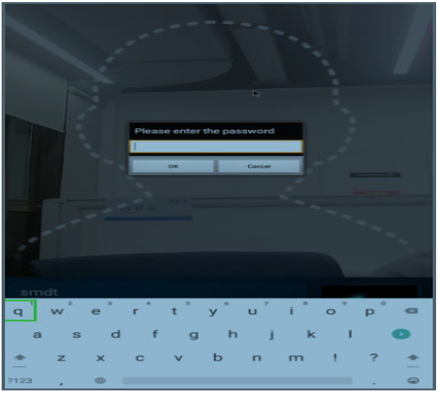

Click the middle mouse button to pop up the
password input box and enter the default password: 123456 to
enter the settings page.

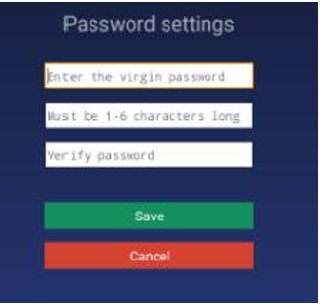

Application password settings
Enter the original password, new password,
confirm the new password, and save it to modify the password; the password
length limit: 1 -6 digits, cannot be set to blank.

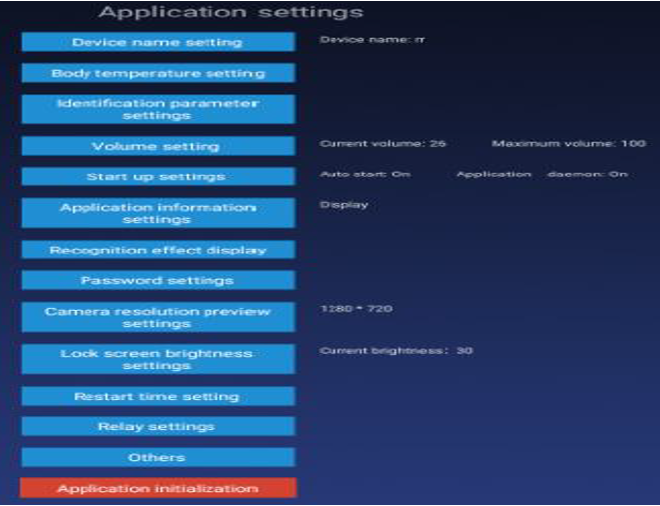

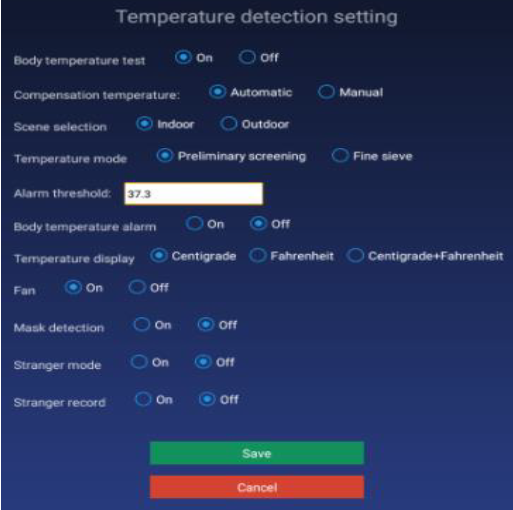

Application management
Enter the Application settings page, which
contains the following function settings:
Body
temperature detection
Control body temperature detection function. You can
choose to turn on or off, the default is on.
On: During the identification of personnel traffic, the
interface will display and broadcast the body temperature value after the face
is recognized.
Off: During the recognition of personnel traffic, the
outline of the face in the interface is automatically hidden. The interface
will not detect body temperature after the face is recognized.
Compensation temperature
Automation: When the ambient temperature may affect the
detected body temperature, the compensation temperature can be set to adjust
automatically.
Manual operation: The compensation temperature value
defaults to 0.0, and the setting range is 0 ~ 1, and a maximum of one decimal
can be reserved.
"+ (Suitable
for normal or low temperature conditions)" is selected by default:
Example: Set compensation + 0.3, if the temperature is
36.1 when detecting and recognition, the broadcast result will be 36.4.
“ -（Suitable
for high temperature conditions)" is selected:
Example: Set compensation -0.2, if the temperature is
36.8 during detection and recognition, the broadcast result will be36.6.
Scenario selection
The indoor and outdoor scenes can be switched. When the
outdoor environment is selected and the compensation temperature is in
automatic mode, the device will automatically calibrate the detection results
according to the ambient temperature.
If the manual mode is selected, the detection results
will be displayed after the manual input value is calculated in both indoor and
outdoor scenes.
Temperature mode
You can choose to switch between the primary screening
mode and the fine screening mode. When the initial screening mode is selected,
the fast detection and fast broadcast mode are implemented in each face
recognition.
If the fine screening mode is selected, the temperature
will be continuously measured and calculated every time the face recognition is
completed, and then the temperature measurement results will be displayed and
broadcast.
Alarm threshold
Set an alarm threshold to control body temperature
detection. When the body temperature alarm is turned on, the identified body
temperature exceeds the threshold, and an alarm is issued. The default is
37.3(The default value of Fahrenheit is 99.14), and only numbers between 30.0
and 45.0 (The Fahrenheit range is 86 to 113)can be entered, and up to one
decimal can be reserved.
Body temperature alarm
Control body temperature alarm function. You can choose
on or off, the default is on.
On: When the detected body temperature is higher than the
threshold, the interface displays the body temperature and emits an alarm
sound; if the body temperature is lower than the threshold, there will be no
alarm.
Off: No matter the body temperature is high or low, there
will be no alarm.
Temperature unit
Celsius degree: After selection, the temperature
measurement interface, pass record, and export table will display the
temperature value in XX°C format.
Fahrenheit degree: After selection, the temperature
measurement interface, pass record, and export table will display the
temperature value in XX℉ format.
Celsius degree +Fahrenheit degree: After selection, the temperature
measurement interface, pass record, and export table will display the
temperature value in XX℃/XX℉
format.
Fan
On: After selection, the temperature measurement module
fan of the device operates normally.
Off: After
selection, the temperature measurement module fan of the device stops running.
Mask detection
On: If you do not wear a mask for recognition, the
display style will be red background after recognition, and no passage is
allowed. Please wear a mask. The voice broadcast "Please wear a mask";
wearing a mask can be recognized normally.
Off: Does not
detect whether to wear a mask during recognition.
Stranger mode
On: After the selection, the stranger can also open the
door normally after face recognition.
Off: After the selection, the stranger cannot pass
through the recognition.
Stranger record
On: After selection, each stranger's face recognition
will generate a recognition record in the pass record.
Off: After selection, no recognition record will be
generated each time the stranger faces are recognized, even if the stranger
mode is turned on immediately.

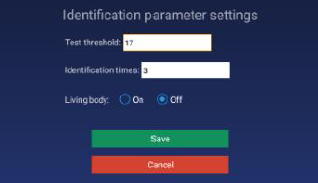

It is used when checking the pictures into
the warehouse.
The higher the threshold is set, the lower the requirements on
the pictures.
It needs to be set reasonably. The default value is 17.
Number of recognitions
The number of times to identify whether a
person is an already-entered person, the default value is 3.
Living portrait detection
Whether to enable live detection when
recognizing personnel can be set to on or off, and the default value is off.
Start - The application will start automatically
when it is turned on, and it will not start when it is turned off.
Application daemon
The application will automatically jump
back to the playback interface within 30 seconds after opening the application
page when opening, and not automatically when closing.
When the camera is turned on, an
abnormality occurs and the camera restarts.

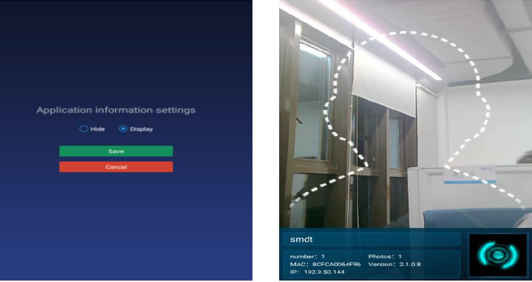

After setting, the camera displays or hides
the bottom information bar in full screen display.
Default:
display, which can be set to show or hide.

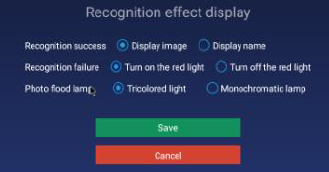

Set the effect of face recognition,
including the display when the recognition is successful (the default value
displays the image) / when the recognition fails (the default value is turned
on the red light), the fill light display (the default value of the three-color
light).
Set the camera resolution when performing
face recognition. The default value is 1280 * 720.Screen-saver brightness
setting.
When face recognition is not required, a screensaver
is required. After recognizing a face, jump to the home page.
The app starts to display the homepage, there is a face recognition homepage within 30s, and no face recognition screensaver within 30s.

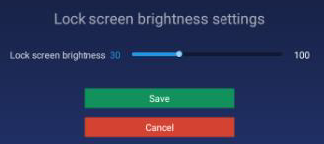

Adjust the brightness value displayed on
the screen saver, drag the set value, and save it.
Set the device restart time: hour-minute
(default value 03:00) and 24-hour system. If you choose to restart, the device
will automatically restart at the selected restart time. If you choose not to
restart, it will not restart. The default value is to restart.
0 - indicates
no automatic closing mode, that is, it will not automatically close after
opening the relay, the default value.
1 - Indicates
automatic closing mode (high effective-default low level, then high level for X
seconds, and finally low level). That is, after opening the relay, a delay of X
seconds will automatically close.
2 - Indicates
auto-close mode (active low-default low level, then high level for X seconds,
and finally low level). That is, after opening the relay, a delay of X seconds
will automatically close.
Delay time - The
default unit is 5 seconds and the maximum value is 63 seconds.
Application initialization
The application initialization function
will clear all data in the application and restore it to its initial state,
including user login information, entered face information, access records, and
settings in the application settings.
Display application and terminal system
related information.
The face database page can view the face
database information of the current device.
The list will display the name, identity,
expiration date, type, and pictures.
Records can be deleted, and local personnel
can also be uploaded to the background.
Pass recognition
It can be
identified based on the person's identity.
You can
also check the body temperature of the identified person, whether to wear a
mask, and display the identification results.
Enrol Face Template
All population starts recording their Face as a stranger on device.
It is
important not to wear a mask at the enrolment stage.
A person is recorded as a stranger only when
device displays Picture captured and the message ADMITTANCE appears.
The display of the
temperature alone does not confirm the recording as a STRANGER.

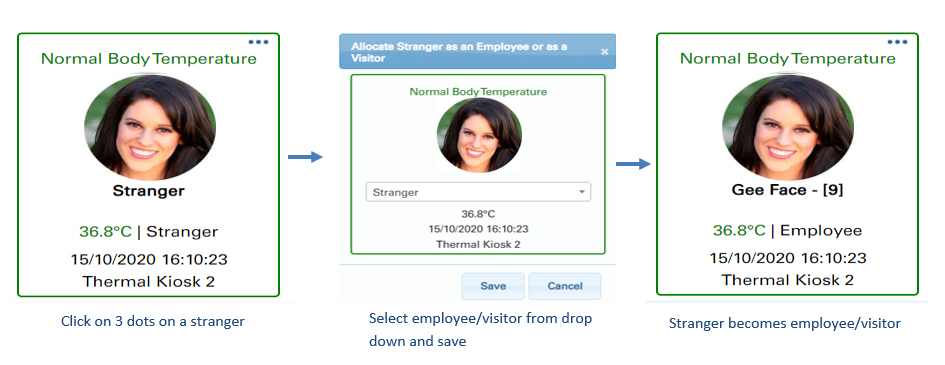

User of the Synergy Workforce GUI will need to associate the Stranger to
correct employees/visitors within Temperature Panel Screen
Temperature
Kiosk Maintenance Screen
Go to Menu – Maintenance – Temperature
Kiosk Template screen
Screen allows to identify who is enrolled
and who are still pending to be enrolled
Screen also allows deleting the existing
template against employee
Same screen also allows updating devices
with employees and their templates so that next time they get identified as
Employees and not strangers

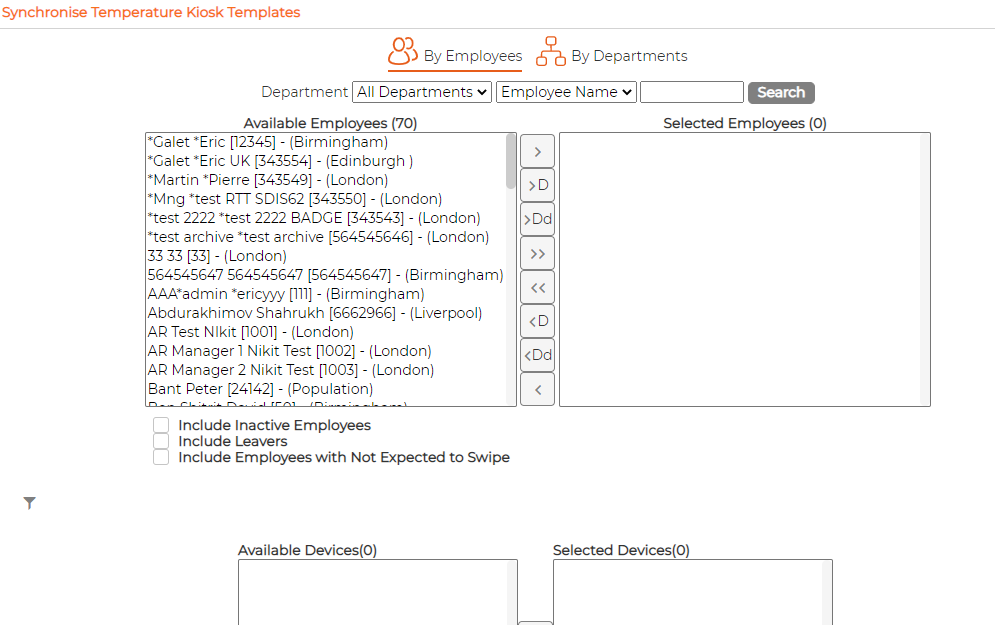

Click on
icon to update all or individual devices with
all or selected employees’ templates.
Once synced, Person who was identified as
stranger on device and later enrolled on GUI, when they scan their Face again
on device it will show their name instead of ADMITTANCE on the device.
Related Articles
Temperature Kiosk Templates Management
Menu - Maintenance - Temperature Kiosk Templates screen allows: Displays who are enrolled and who are not enrolled Enrolled Date Allows deleting the template from DatabaseTemperature Panel
Temperature panel screen displays real time temperature reading captured on Temperature kiosk devices Same screen allows enrolling employee pictures identified as Strangers All population starts recording their Face as a stranger on device. It is ...Setup VM Kiosk Device
Go to menu – System Setup - Devices Click on icon to Add VM device and add necessary parameters and save Additionally, go to Visitor Printer settings Tab and setup following items and click save Printer IP - Must match the Static IP address ...Visitor Management Setup
Go to Menu, Visitor Management and click on Visitor settings General Tab Allows defining general information that will be visible on VM Kiosk 1. Company Logo - Upload your company logo that will be visible on the VM Kiosk 2. Keep ...VM Kiosk Setup - Samsung Tablet
1. Select default language – English (United Kingdom) 2. Agree to just End User License Agreement and click Next 3. Skip the step to bring old data 4. Select Wi-Fi network for the device and enter password, make ...
