Suprema Biomini Installation and Finger Enrolment Guide

Suprema Biomini Installation and Finger Enrolment Guide

1. Install Biomini device

      Plug in USB Biomini device

      Install drivers Sup_Fingerprint_Driver_v2.2.1.exe

      Drivers can be downloaded from - https://drive.google.com/file/d/1CDHOLQnud5sVFc84ALcxhjNd1fq8mxqP/view?usp=sharing

2. Install Biomini Agent

      Download the respective items from



      Extract and copy respective Web Agent Folder to the C:\ or any drive of your selection

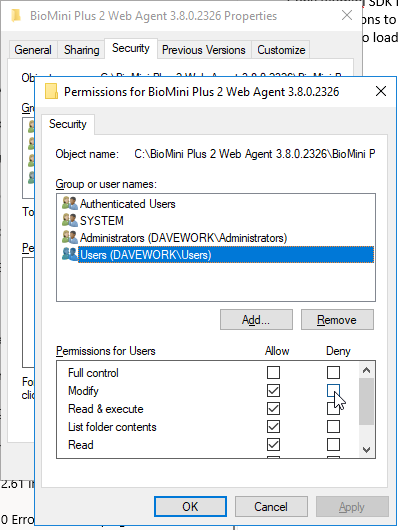

      Set folder permissions to Read, Write & Modify for respective users.


      Double click on agent to be executed (you may need to run it as Administrator) and live it running in the task bar.

3. Setup Finger Enroller device in Synergy Workforce

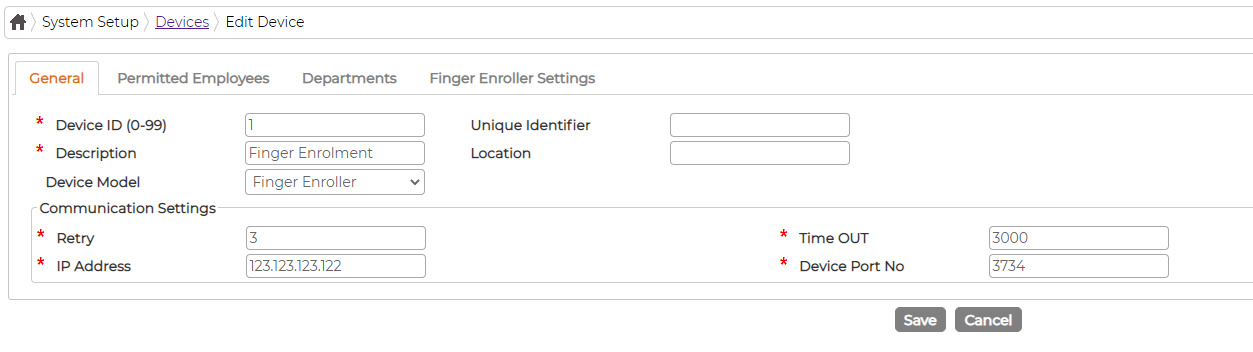

      Add and configure a new "Finger Enroller" device within Synergy Workforce with a dummy IP Address

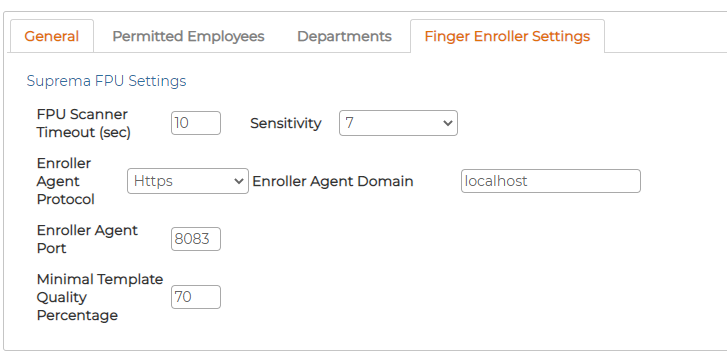

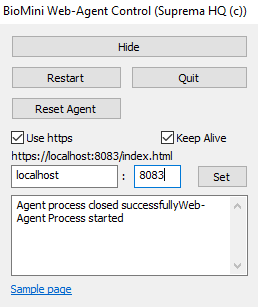

      Ensure following values from the AgentCtrl.exe matches with those in Finger Enroller settings tab:
            a. Enroller Agent protocol
            b. Agent Domain
            c. Agent Port


      Additional setup the value as desired
            a. Scanner timeout (sec) = default 10 seconds
            b. sensitivity = default 7
            c. Template quality percentage = minimum 70%; higher the better


4. Enrol Finger Templates

      Users now has now 2 options to enrol finger templates from:

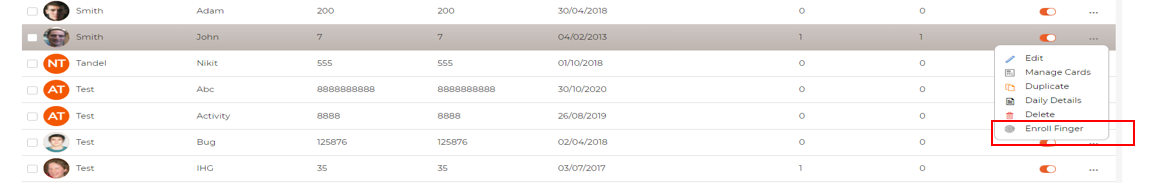

            1. Personnel screen:

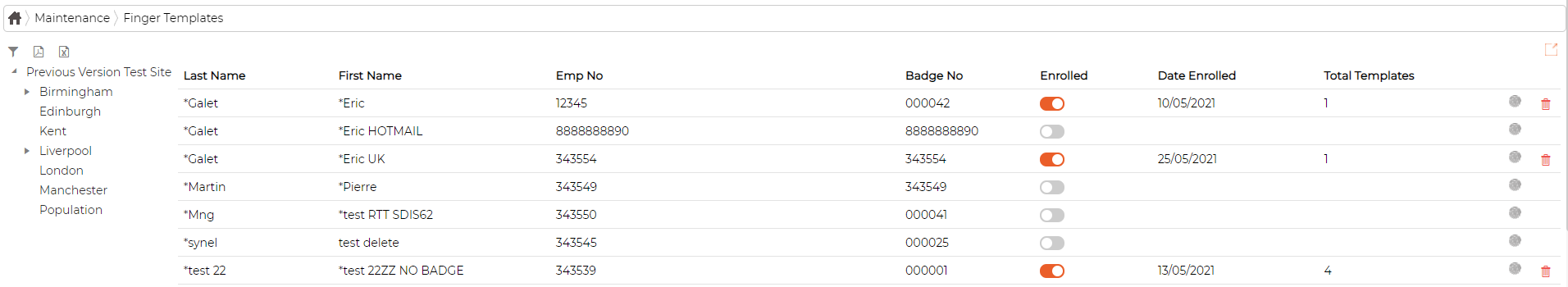

            2. Menu - Maintenance - Finger Templates

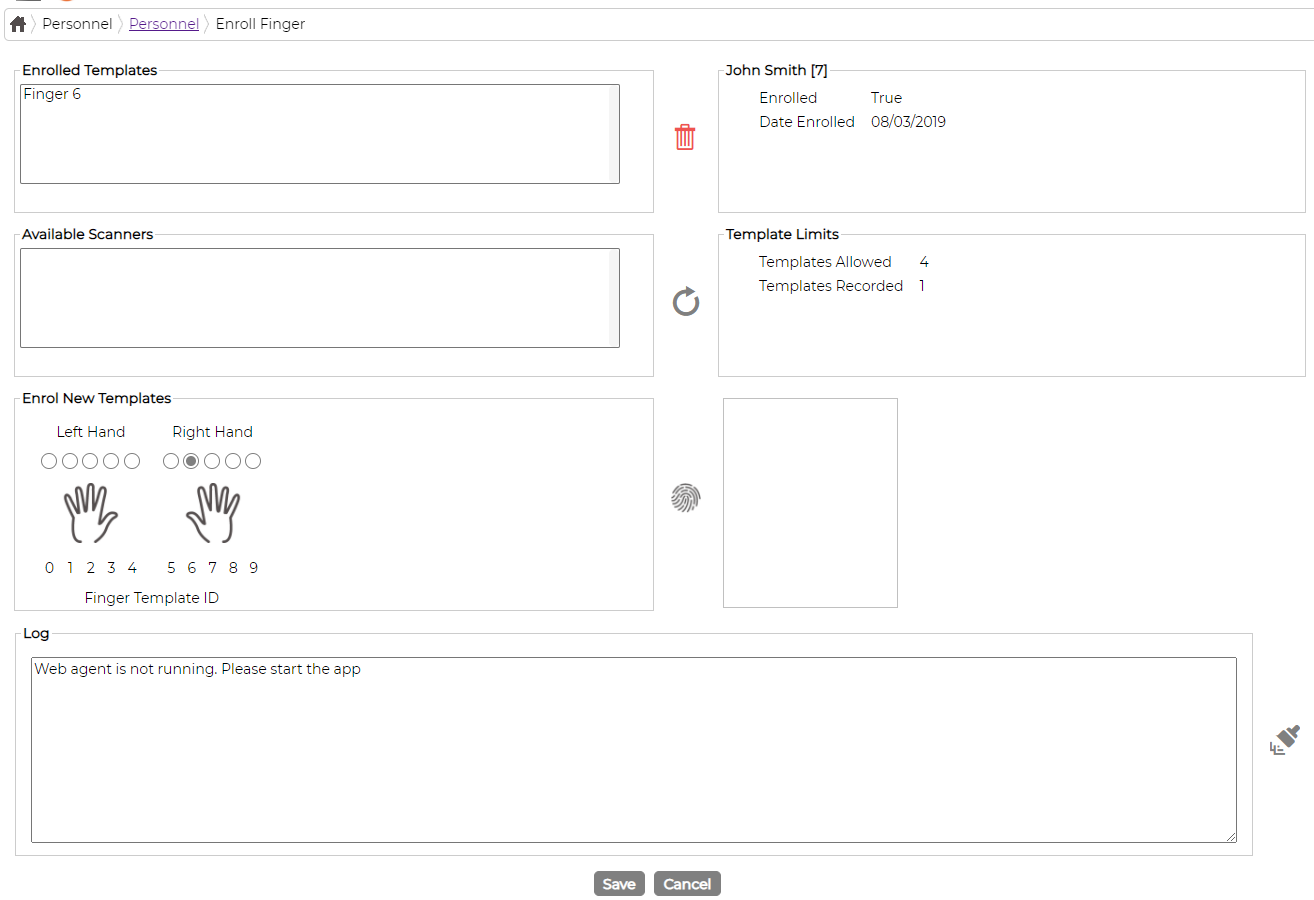

      In both cases, screen for enrolment will look same


      When the screen loads there should be a device listed under Available Scanners.

      If nothing appears, check the settings again.

      If successful, select the finger and click on enrol icon to start finger enrolment

      Once enrolled, click on save
