IR (Hand Punch) Setup in Synergy Workforce

IR (Hand Punch) Setup in Synergy Workforce

Go to Menu - System Setup - Devices

Click on the icon to add device and fill in the respective parameters as required.

      General Tab

Type = General

Utilization = Select either Time and Attendance or Access Control or both Time and Attendance + Access Control depending on the usage

Device ID = Must be unique per each device

Description = Give a description of the device. Example Location Name

            Department = Select department (optional)

            Site Id = Optional

Device Model = IR (Handpunch) Device

Time Zone = Select the correct Time Zone depending on the country of installation

            Active = must be switched ON

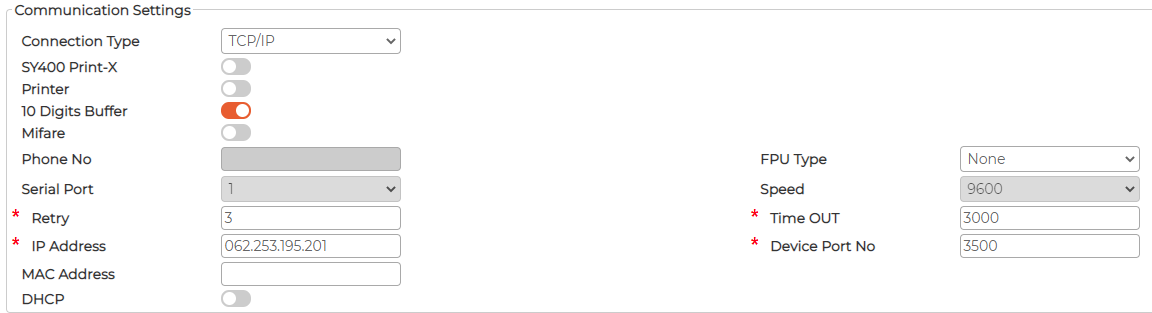

            Connection Type = TCP/IP

            10 digits Buffer = must be switched ON

            IP Address = Static IP address of the device (Synergy Workforce installed locally)
                                  = Static External Public IP address (Hosted Installation with Port Forwarding rules)

            Device Port No = Port no allocated to the device



      Permitted Employees Tab

            Optional

            If selected, employees only those selected are permitted to use the device.

            If none selected, everyone can use the device

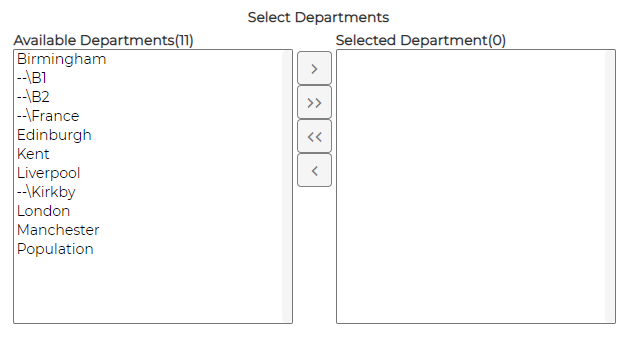

      Departments Tab

            Optional

            If selected, employees only from selected departments are permitted to use the device.

            If none selected, everyone can use the device
